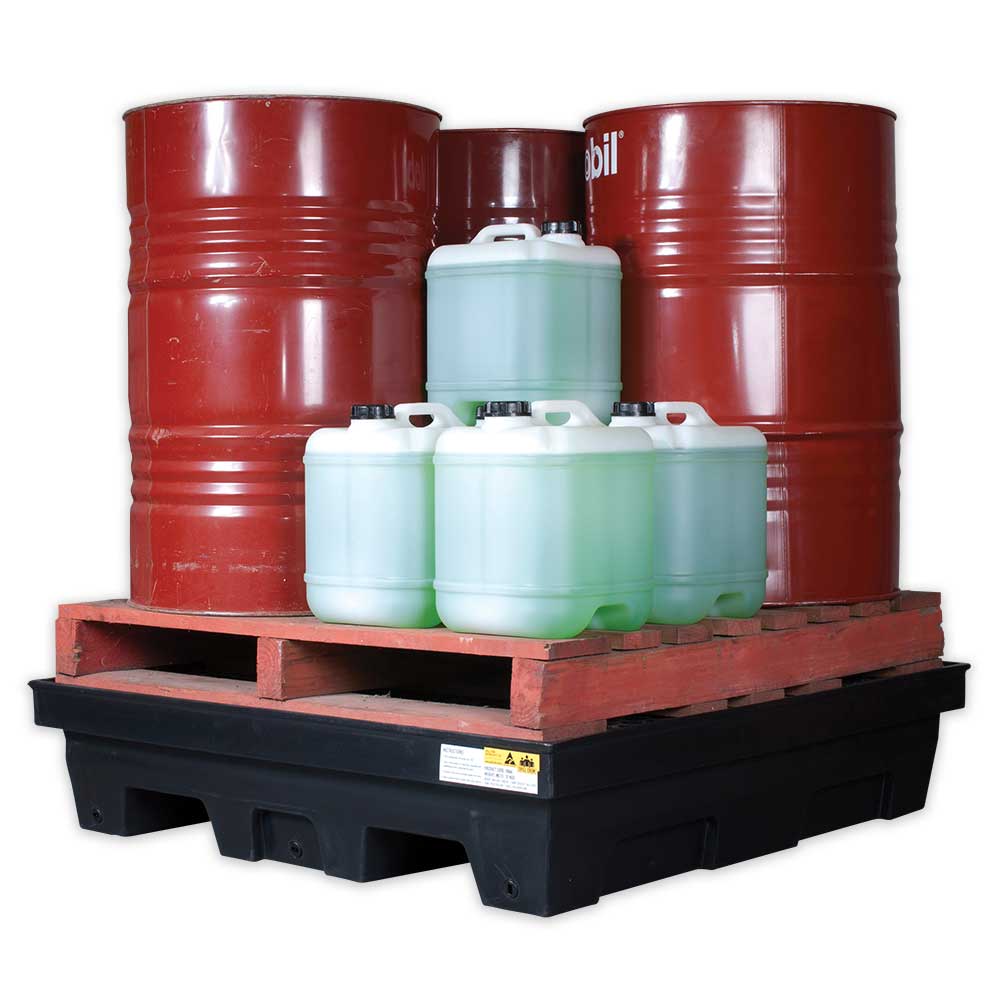

Drum Bund – 4 Drum


Drum Bund – 4 Drum

  • Store drums directly or palletised on the bund.
  • Bund and/or stored drums can be picked up with a forklift.
  • Tough construction – stands up to the harshest environments.
  • Has a removable grated floor for easy cleaning.
  • Manufactured and tested in Australia with a 2800kg UDL.

Unique features

  • This four drum spill pallet is a heavy-duty, durable, chemically-resistant polypropylene grate. The 60mm honeycomb profile provides superior load-bearing capabilities
  • Encapsulated data plates provide instructions for the operator, load-bearing capacities, bund volume and materials of construction. These plates cannot peel off or be lost as they are moulded into the bund.
  • Removable grates allow spilled liquids to be easily reclaimed or removed. Trapped animals such as snakes can also be accessed with ease.

Built tough

  • This four drum spill pallet is made right here in Australia and are built for our tough Australian conditions.
  • Using 100%-polyethylene bunds, combined with polypropylene grates, the Spill Crew range of bunding provides superior corrosion resistance to a wide range of chemicals, oils and fuels.
  • The safe storage and handling of drums, containers, tanks, machinery and equipment in the workplace protect workers and the environment from incidental spills, leaks and drips.

Why use a drum bund?

  • The bund captures the escaping liquid, so slips and falls do not occur as a result of a slippery surface. The environment is protected from contamination of soil and from spilled liquids entering stormwater and drainage systems and traveling further into the environment to contaminate areas further afield.

Instructions for use

  • Check payload does not exceed UDL limit.
  • Check stored liquids are chemically compatible with the polyethylene bund and polypropylene grates.
  • Promptly remove any captured liquids from the sump.
  • Check payload volume complies with sump capacity.

Spill crew stock a wide range of drum bunds available in both poly and steel, to view the full range please click here

Size 123cm x 123cm x 28cm
Weight 31 kgs
Capacity in sump 242 litres
UDL 2800 kg
Bund material Polyethylene
Grate material Polypropylene


  • Bunds must be situated on level ground.
  • We regularly hear of spill pallets and bunds collapsing or distorting in the Australian heat sending IBCs and drums to the ground, with their contents spilling dangerously across the workplace. Whilst this may in part be attributed to poorly positioned pallets (on uneven ground), imported bunds are not manufactured for the extremes of Australian summer conditions.
  • Imported bunds often have thin walls or added fillers to reduce costs, resulting in bunds collapsing or distorting in the Australian heat.
  • Spill Crew heavy-wall spill pallets are manufactured from 100% rotationally-moulded polyethylene and are load tested by NATA accredited engineers (Falcon Test Engineers) in Victoria, Australia.
  • The bund design (including grate) has undergone a fully loaded compression test maintained for 28 days at 40°C. The dynamic compression test certificates are available upon request.
