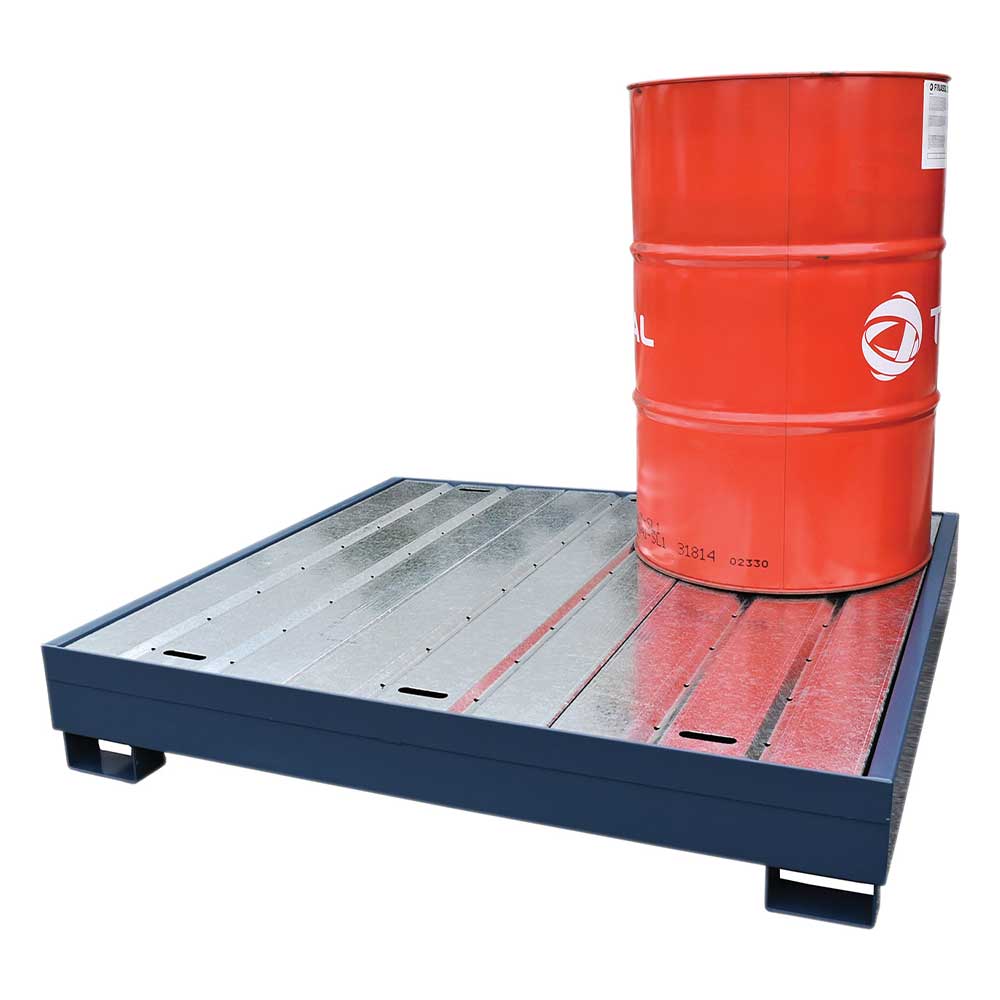

Four Drum Spill Pallet – Powder Coated Steel

Print
SPDB4

Four Drum Spill Pallet – Powder Coated Steel

  • Store up to 4x 205L drums.
  • Use with Class 3 flammable liquids and most chemicals, acids and oils.
  • Tough construction – manufactured from heavy duty steel.s
  • Manufactured and tested in Australia.

Steel four drum bund: Unique features

  • Steel spill pallet designed to safely hold up to four 205L drums.
  • Heavy duty spill pallet made from powder-coated galvanised steel.
  • Suitable for Class 3 Flammable Liquids (eg petrol, kerosene) as well as combustibles (eg diesel and oil), and other chemically compatible liquids.
  • Features removable grates for easy cleaning and to remove spilled liquids, rainwater or any other trapped debris.
  • Forklift-friendly design makes handling drums safer and easier.
  • Drum bund prevents spilled liquids from contaminating inventory, factory floors or storm water drains.
  • Maximum load (UDL): 2000 kg
  • Internal sump capacity: 243 litres

Built tough

All Spill Crew pallets and trays are made right here in Australia and are built for our tough Australian conditions.

Outside storage

For bunds stored outdoors use bund covers to prevent rainwater ingress and overflow of captured liquid.

Why use a drum bund?

  • The safe storage and handling of drums, containers, tanks, machinery and equipment in the workplace protect workers and the environment from incidental spills, leaks and drips.
  • The bund captures the escaping liquid so slips and falls do not occur as a result of a slippery surface.
  • The environment is protected from contamination of soil and from spilt liquids entering stormwater and drainage systems and travelling further into the environment to contaminate areas further afield.

Instructions for use

  • Check payload does not exceed UDL limit
  • Check stored liquids are chemically compatible with steel bund and grates.
  • Promptly removed any captures liquids from the sump.
  • Check payload volume complies with sump capacity.
Code Description
SPDB4 Four drum spill pallet – powder coated steel



Size 120.4cm x 135.4cm x 22.7cm
Capacity in sump 243 litres
UDL 2000 kg
Bund Material Heavy duty – galvanised steel
Grate Material Heavy duty – galvanised steel



SAFE WORKING LOAD AND PERFORMANCE TESTING

  • Bunds must be situated on level ground.
  • We regularly hear of spill pallets and bunds collapsing or distorting in the Australian heat sending IBCs and drums to the ground, with their contents spilling dangerously across the workplace. Whilst this may in part be attributed to poorly positioned pallets (non-level ground), imported bunds are not manufactured for the extremes of Australian summer conditions.
  • Imported bunds often have thin walls or added fillers to reduce costs resulting in the bunds collapsing or distorting in the Australian heat.
