1 Drum Bund – low profile

Print
DB1LP

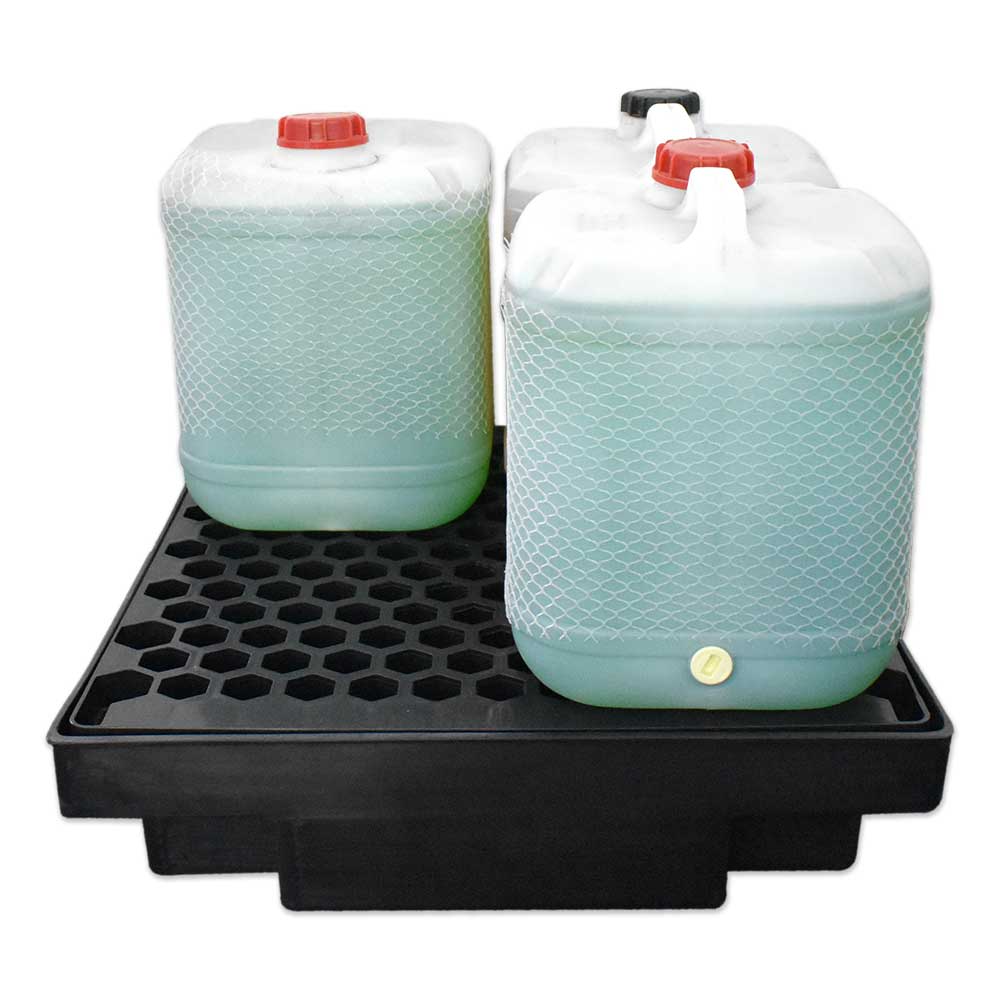

1 Drum Bund – low profile

  • One drum spill pallet
  • Store smaller containers or batteries.
  • Use with most chemicals, acids, oils or fuels.
  • Tough construction – stands up to the harshest environments.
  • Has a removable grated floor for easy cleaning.
  • Manufactured and tested in Australia with a 750kg UDL.

This low profile one drum spill pallet to securely house 20L drums, batteries, or small containers, adeptly containing leaks, drips, and spills. It’s small size is suitable for use for storing liquid containers on work benches or bench tops.

Unique features

  • Heavy-duty, durable, chemically-resistant polypropylene grates – the 60mm honeycomb profile provides superior load-bearing capabilities.
  • Encapsulated data plates provide: instructions for the operator, load-bearing capacities, bund volume and materials of construction. These plates cannot peel or be lost as they are moulded into the bund.
  • Removable grates allow spilled liquids to be easily reclaimed or removed. Trapped animals such as snakes can also be accessed with ease.

Built tough

All Spill Crew pallets and trays are made right here in Australia and are built for our tough Australian conditions.

Using a 100% polyethylene bund, combined with polypropylene grates, Spill Crew’s range of spill pallets and bunding provides superior corrosion resistance to a wide range of chemicals, oils and fuels.

Low profile ramp

  • Use a ramp to provide easy access to low profile spill pallets.
  • Manufactured and tested in Australia with a 1000kg UDL.

Why use a drum bund?

  • The safe storage and handling of drums, containers, tanks, machinery and equipment in the workplace protect workers and the environment from incidental spills, leaks and drips.
  • The bund captures the escaping liquid so slips and falls do not occur as a result of a slippery surface.
  • The environment is protected from contamination of soil and from spilled liquids entering stormwater and drainage systems and travelling further into the environment to contaminate areas further afield.

Instructions for use

  • Check payload does not exceed UDL limit.
  • Check stored liquids are chemically compatible with the polyethylene bund and polypropylene grates.
  • Promptly remove any captured liquids from the sump.
  • Check payload volume complies with sump capacity.

Click here to view the full range of Spill Crew drum bunds

Size 60cm x 60cm x 15cm
Weight 9 kgs
Capacity in sump 38 litres
UDL 750 kg
Bund material Polyethylene
Grate material Polypropylene



SAFE WORKING LOAD AND PERFORMANCE TESTING

  • Bunds must be situated on level ground
  • We regularly hear of spill pallets and bunds collapsing or distorting in the Australian heat, sending pallet contents to the ground and spilling dangerously across the workplace. Whilst this may in part be attributed to poorly positioned pallets (uneven ground), imported bunds are not manufactured for extreme Australian summer conditions.
  • Imported bunds often have thin walls or added fillers to reduce costs, resulting in bunds collapsing or distorting in the Australian heat.
  • Spill Crew heavy-wall spill pallets are manufactured from 100% rotationally-moulded polyethylene and are load tested by NATA accredited engineers (Falcon Test Engineers) in Victoria, Australia.[/li[]
  • The bund design (including grate) has undergone a fully-loaded compression test, maintained for 28 days at 40 degrees Celsius. The dynamic compression test certificates are available on request.
