Single IBC Bund

Print
DBSIBC

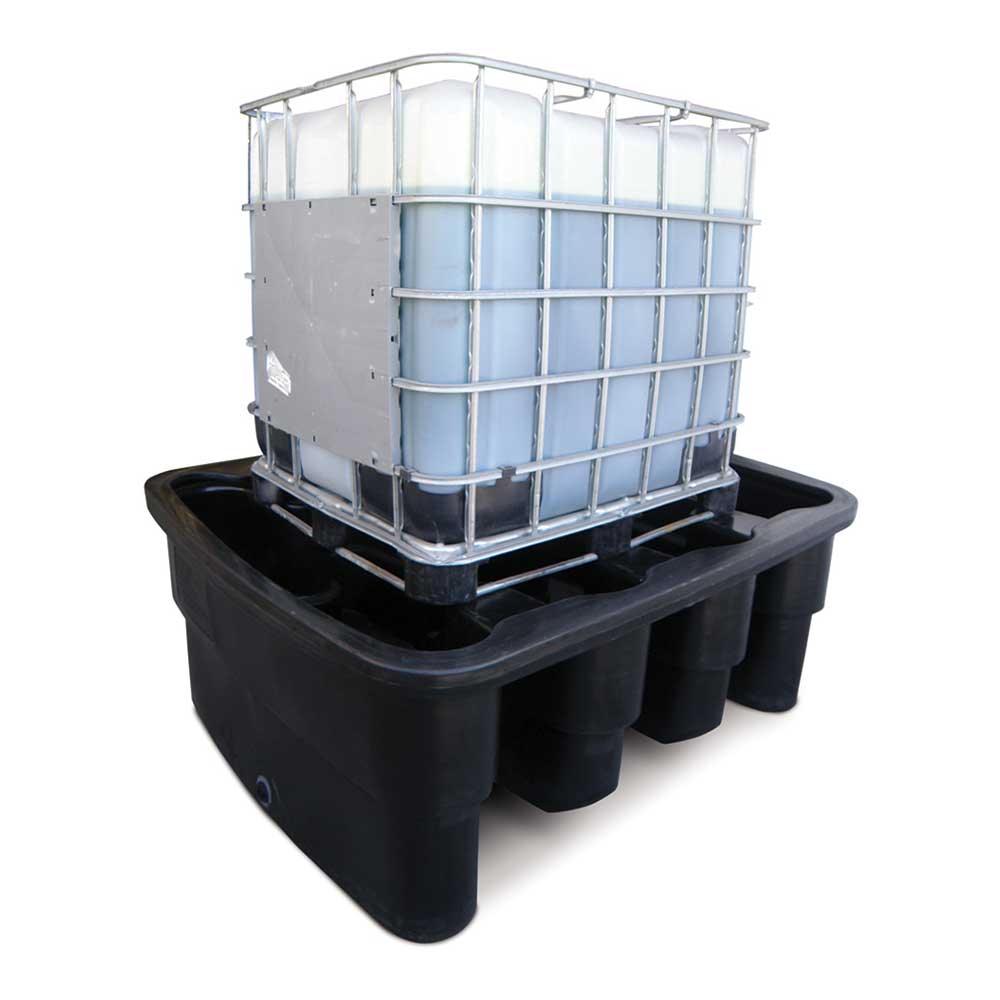

Single IBC Bund

  • Store a single IBC unit or pallet of drums.
  • Use with most chemicals, acids and oils.
  • Tough construction – stands up to the harshest environments.
  • Has a removable grated floor for easy cleaning.
  • Manufactured and tested in Australia with a 2000kg UDL.

IBC bund – Unique Features

All Spill Crew bunds have:

  • Heavy duty, durable chemically resistant polypropylene grates – the 60mm honeycomb profile provides superior load bearing capabilities
  • Encapsulated data plates that provide instructions for the operator, load bearing capacities, bund volume and materials of construction. These plates cannot peel or be lost as they are moulded into the bund.
  • Removable grates allow spilt liquids to be easily reclaimed or removed. Trapped animals such as snakes can also be accessed with ease.

Built Tough

  • All Spill Crew pallets and trays are made right here in Australia and are built for our tough Australian conditions.
  • Using 100% polyethylene bunds combined with polypropylene grates the Spill Crew range of bunding provides superior corrosion resistance to a wide range of chemicals, oils and fuels.

Outside Storage

For bunds stored outdoors use Bund Covers to prevent rainwater ingress and overflow of captured liquid. Click here to view our range of drum and IBC bund covers

Why Use a Drum Bund?

  • The safe storage and handling of drums, containers, tanks, machinery and equipment in the workplace protect workers and the environment from incidental spills, leaks and drips.
  • The bund captures the escaping liquid so slips and falls do not occur as a result of a slippery surface.
  • The environment is protected from contamination of soil and from spilt liquids entering stormwater and drainage systems and traveling further into the environment to contaminate areas further afield.

Instructions for Use

  • Check payload does not exceed UDL limit
  • Check stored liquids are chemically compatible with polyethylene bund and polypropylene grates.
  • Promptly removed any captures liquids from the sump.
  • Check payload volume complies with sump capacity.
Code Description
DBSIBC Single IBC Bund



Size 190cm x 150cm x 75cm
Weight 96 kgs
Capacity in sump 1150 litres
UDL 2000 kg
Bund Material Polyethylene
Grate Material Polypropylene



SAFE WORKING LOAD AND PERFORMANCE TESTING

  • Bunds must be situated on level ground.
  • We regularly hear of spill pallets and bunds collapsing or distorting in the Australian heat sending IBCs and drums to the ground, with their contents spilling dangerously across the workplace. Whilst this may in part be attributed to poorly positioned pallets (non-level ground), imported bunds are not manufactured for the extremes of Australian summer conditions.
  • Imported bunds often have thin walls or added fillers to reduce costs resulting in the bunds collapsing or distorting in the Australian heat.
  • Spill Crew heavy wall spill pallets are manufactured from 100% rotationally moulded polyethylene and are load tested by NATA accredited engineers (Falcon Test Engineers) in Victoria, Australia.
  • The bund design (including grate) has undergone a fully loaded compression test maintained for 28 days at 40°C. The dynamic compression test certificates are available in the link below.
